Interactive Bubble Wall Panel

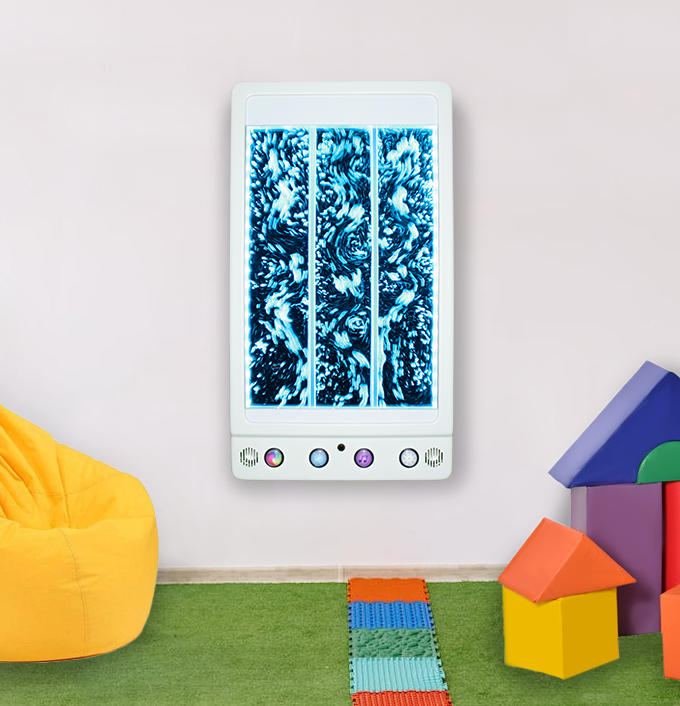

Introducing the Causeway Sensory Interactive Bubble Wall Panel

The Causeway Sensory Interactive Bubble Wall Panel lets you choose colours while music plays in the background through the built-in speakers and micro SD card. The action reaction effect by influencing the different bubble flows make it a unique & magical panel. Watch in awe as the rising bubbles are bathed in vibrant LED lights that change colours, creating a mesmerizing visual display.

Size: H900 x W500 x D100mm

Operation

Once the Causeway Sensory Interactive Bubble Wall Panel is filled, simply plug the panel into the mains socket and switch on the power. The LCD display will light up and display a lock symbol. The panel will start in the last mode used. The unlock the panel, press and hold down the up and down arrow keys for 3 seconds.

The following menu options can now be accessed with the use of the arrow keys. Press OK button to select.

1. Volume
2. Brightness
3. Speed
4. Mode
5. Microphone Sensitivity
6. Wireless Connectivity
7. Pairing

Panel Buttons

The Bubble Panel ha 4 robust buttons at the base for easy access.

1. Colour Change – Change the LED Colour.
2. Bubbles On/Off – Turn to bubbles on or off.
3. Change Track – Cycle through the music tracks.
4. Pattern – Change the pattern.

SD Card

The panel comes with a micro SD card with 11 music tracks, including 1 blank track. Users can replace this micro SD card with another to suit their own personal preferences.

External Microphone

A microphone is included as standard with every Bubble Panel. When this is plugged into the microphone socket, located between the blue and purple buttons, the internal microphone is disabled, allowing for more focused sound-to-light activities.

Modes

The Bubble Panel comprises different modes for use with the included microphone, each one providing visual stimulation and teaching cause and effect.

Mode 1: No Microphone

Mode 2: Colour Cycle

Mode 3: Bubbles Activate

Mode 4: Colour Change and Bubbles Activate

Mode 5: Colour Face & Bubbles Deactivate

Key Features:

Interactive: Change the colours remotely with one of our Causeway Wireless Interactive Controllers.

Cause & Effect: Simple button press turns bubbles on and off and changes colours making it an ideal tool for teaching cause and effect.

Music & White Noise: Relax with soothing music tracks and white noise sounds, setting the scene for a soothing sensory experience.

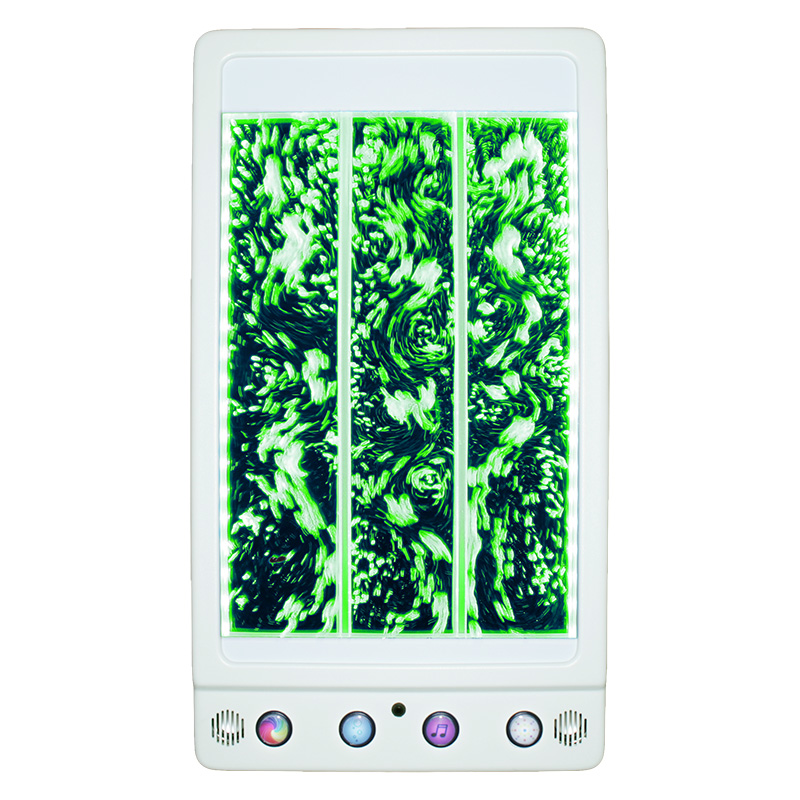

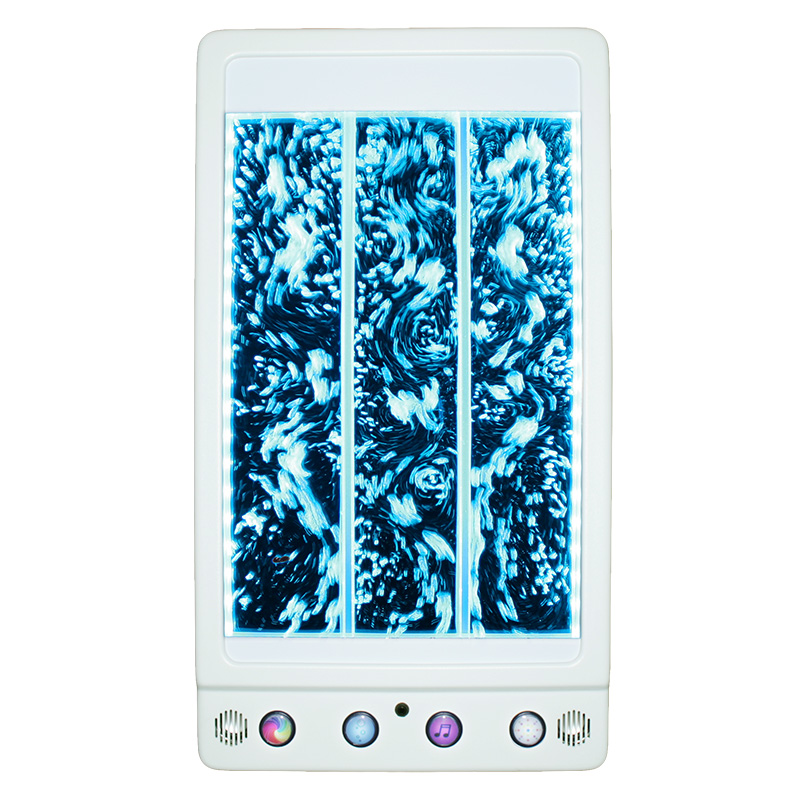

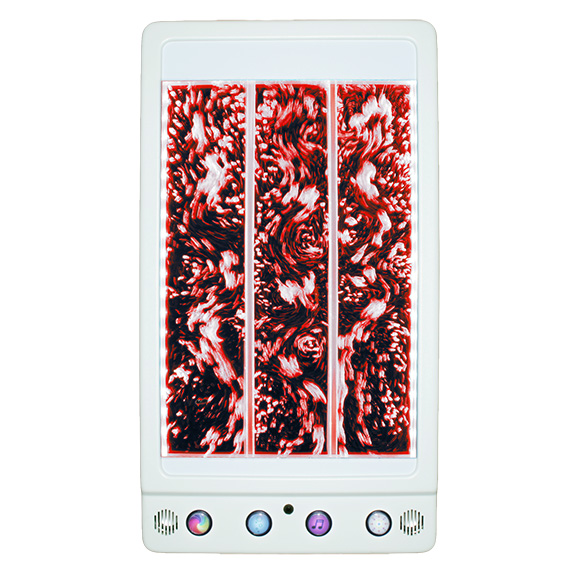

LED Light Patterns: Three LED Light Patterns for a visually stimulating or relaxing display.

Sound Reactive: Using the built in or external microphone to control colour, bubbles or both. You can also ‘Blow Bubbles’ by blowing into the microphone and activating the bubbles.

Sound Reactive: Utilize the external microphone (included) to control colour, bubbles, or both, with the added fun of “blowing bubbles” by blowing into the mic.

Quiet Mode: Responds to noise and turns bubbles and colour change off. Keep quiet to keep the bubbles flowing and the lights turned on.

Package Contents

• Causeway Sensory Interactive Bubble Panel
• Microphone and Cable
• Drain Hose
• Fill Pump
• Power Cable

Installation

To begin, you will need to remove the two white brackets from the back of the panel. Note the fixing on the top bracket will need to be removed. Once removed, locate the enclosed drilling template and use to drill mounting holes for the brackets. Once mounted, hang the Causeway Sensory Interactive Bubble Panel on the brackets and secure by replacing the top bracket fixing.

Filling

Please use the pump supplied. With the Causeway Sensory Interactive Bubble Panel powered off, connect the pump hose to the pipe coming out of the bottom of the panel. Fill a bucket with water. the panel holds approximately 3 litres of water, The bucket should hold more than this so that the pump does not run dry when filling. Add BCB water treatment to the water, Approximately 1.5ml of treatment should be added for each litre of water used to fill the bucket. E.g. if 4 litres of water are in the bucket, 6ml of BCB fluid should be added. Allow the water level to reach 1cm below the bottom of the white sticker at the top of the panel. Turn the pump off by unplugging it from the socket. Once filled, disconnect the pump hose from the panel.

Draining

Turn the bubble panel off. Place the open end of the drain hose into an empty bucket. Connect the drain hose to the same pipe used to fill the panel. Allow the panel to fully drain out into the bucket. Once empty, disconnect the drain hose and dispose of the old water. The water in the panel should be changed once a month, with fresh water treatment added.
