Interactive Colour Blending Panel

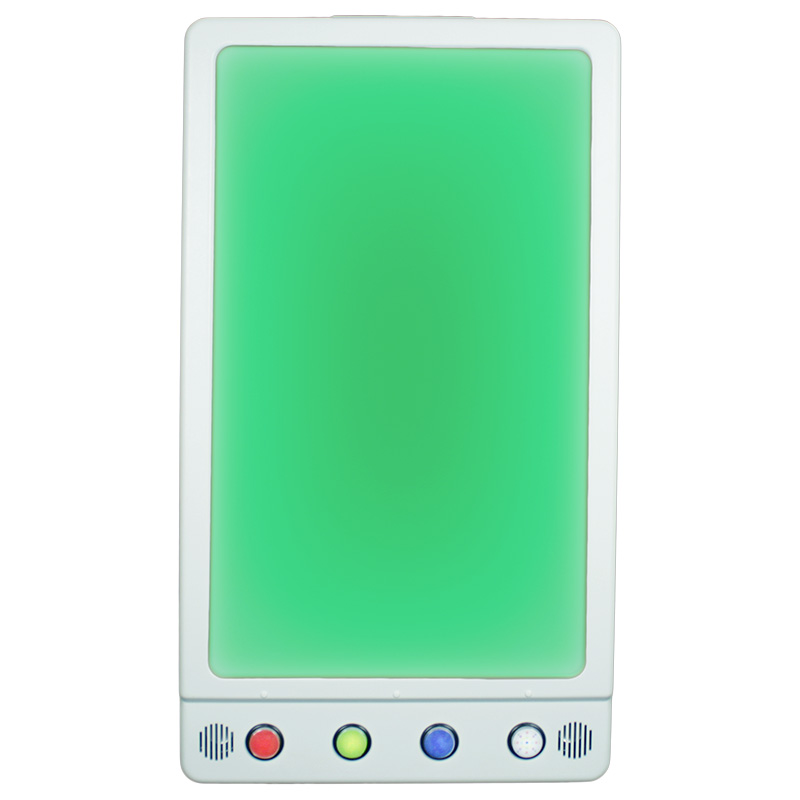

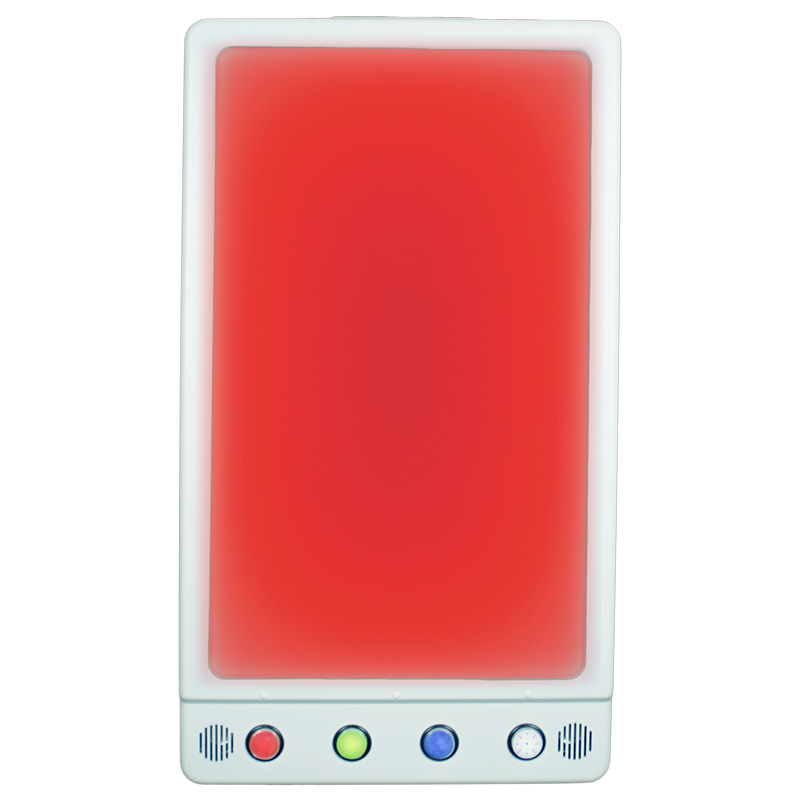

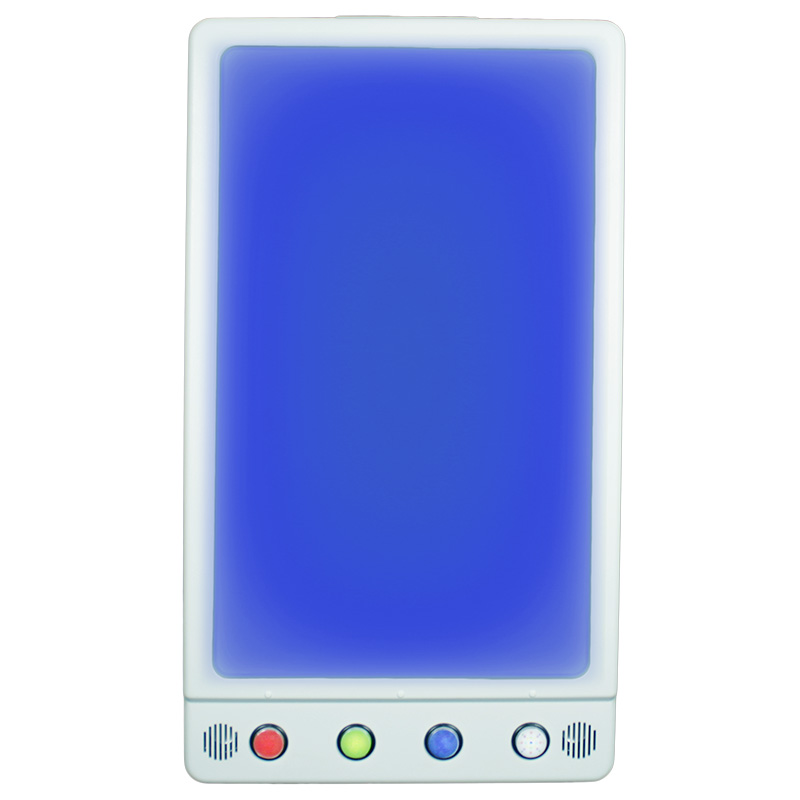

Introducing the Causeway Sensory Interactive Colour Blending Panel

Experience how red, green and blue colours blend together to create countless colours. Contains a series of interactive modes for different levels & challenges. The panel will also communicate all colour choices to other Causeway Interactive products in the room

Size: H900 x W500 x D100mm

Operation

The Causeway Interactive Colour Blending Panel is ready to use straight out of the box. Simply plug the panel into the mains socket and switch on the power. The LCD display will light up and display a lock symbol. The panel will start in the last mode used. The unlock the panel, press and hold down the up and down arrow keys for 3 seconds.

The following menu options can now be accessed with the use of the arrow keys. Press OK button to select.

1. Volume
2. Brightness
3. Speed
4. Mode
5. Wireless Connectivity
6. Pairing

Panel Buttons

The Bubble Panel has 4 robust buttons at the base for easy access.

1. Red – add red colour
2. Green – add green colour
3. Blue – add blue colour
4. Pattern – change the pattern

Patterns

Press the Pattern button in any mode to cycle through the pattern modes.

1. Static Colour
2. Vertical Clusters
3. 4 Clockwise Clusters
4. Shooting Star
5. Colour Wipe
6. Jets
7. Opposite Clusters
8. 2 Clockwise Clusters
9. Bouncing Clusters
10. Spreading Beams

SD Card

The panel comes with a micro SD card with 11 music tracks. Users can replace this micro SD card with another to suit their own personal preferences.

Modes

The Causeway Colour Blend Panel has five different modes of operation, each with numerous patterns. Sound effects add auditory stimulation to the mixing of light colours. In all modes, patterns will be display in the current colour selected.

Mode 1: Red, Green, Blue Mode – Solid Colours

Mode 2: Red, Green, Blue – Colouring Mixing Mode

Mode 3: Red, Green, Blue – Shades of Colour in Steps

Mode 4: Colour Mixing Mode – Adding and Subtracting Colour in Steps

Mode 5: Multicoloured Patterns

Installation

To begin, you will need to remove the two white brackets from the back of the panel. Note the fixing on the top bracket will need to be removed. Once removed, locate the enclosed drilling template and use to drill mounting holes for the brackets. Once mounted, hang the Causeway Sensory Interactive Bubble Panel on the brackets and secure by replacing the top bracket fixing.
