LED Waterless Bubble Tube

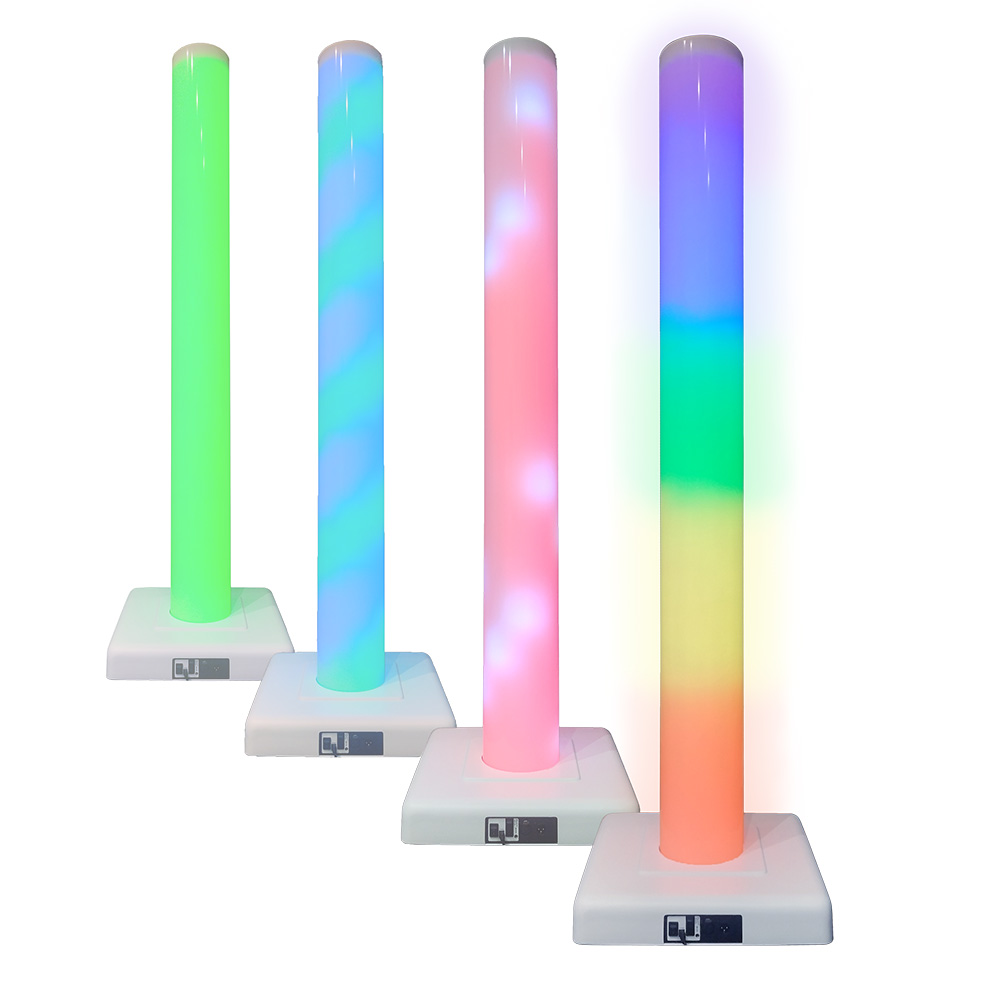

Introducing the Causeway Sensory LED Waterless Bubble Tube.

LED Waterless Interactive Light Tube, perfect for those who love bubble tubes but need a water-free alternative!  Where infection control and minimal maintenance is of paramount importance this Waterless LED Light Tube is a superb investment. With 16 light and 3 sound responsive modes including bubble effects the light tube can provide stimulation and relaxation to all ages. It can also be used with a compatible switch for aiding in cause and effect.  The LED Light Tube can also be operated remotely using the 8 Colour Wireless Controller or Colour Cube Controller. A light tube collar is recommended to secure the tube to a wall – these are available to purchase separately.

The included remote control allows you to select your own colour, speed the lights change, brightness or change the pattern, such as flashing, strobing, fading, smooth or static.
LED Tube Height: 1.8m.
LED Tube Diameter: 150mm.
Base: W405mm x D405mm x H90mm.

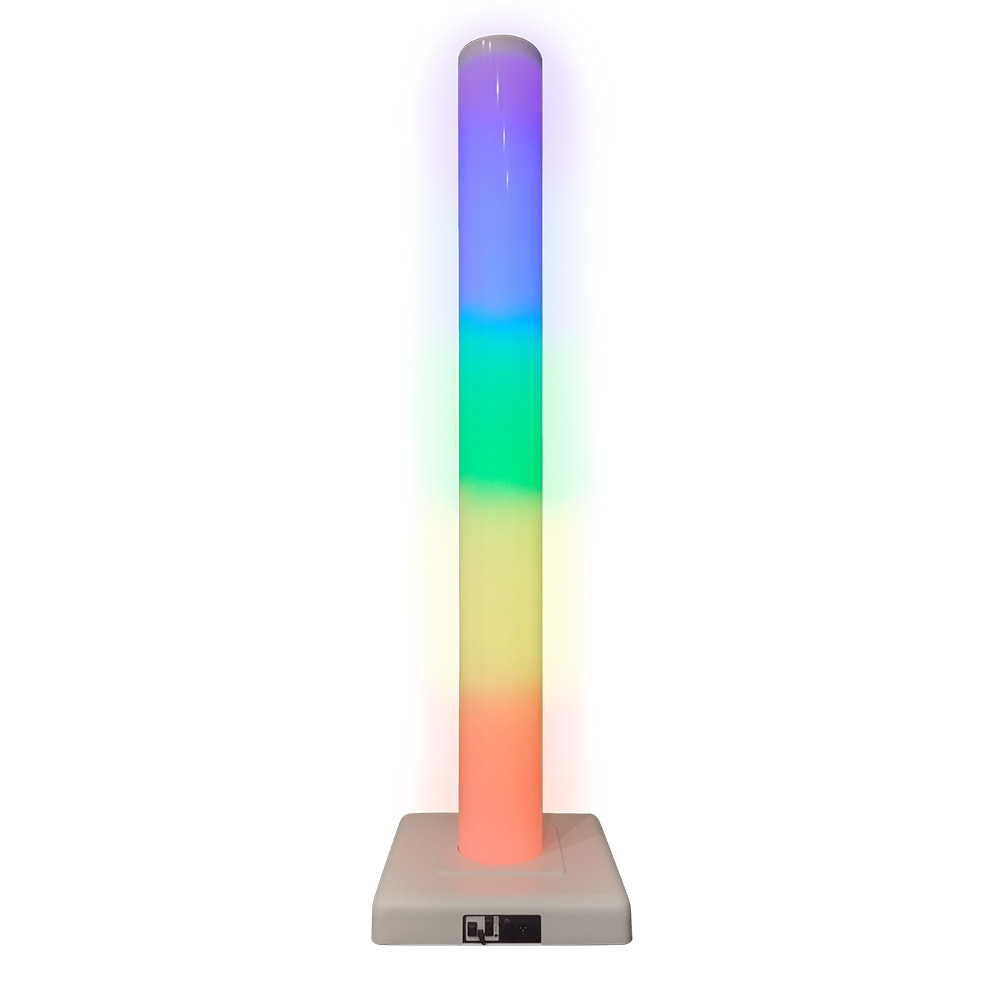

Perfect for those who love bubble tubes but need a water-free alternative! Ideal for environments where infection control is of paramount importance.

Operation

1. On/ Off Switch When the LED Column is plugged into power, use this button the turn the product On/Off.

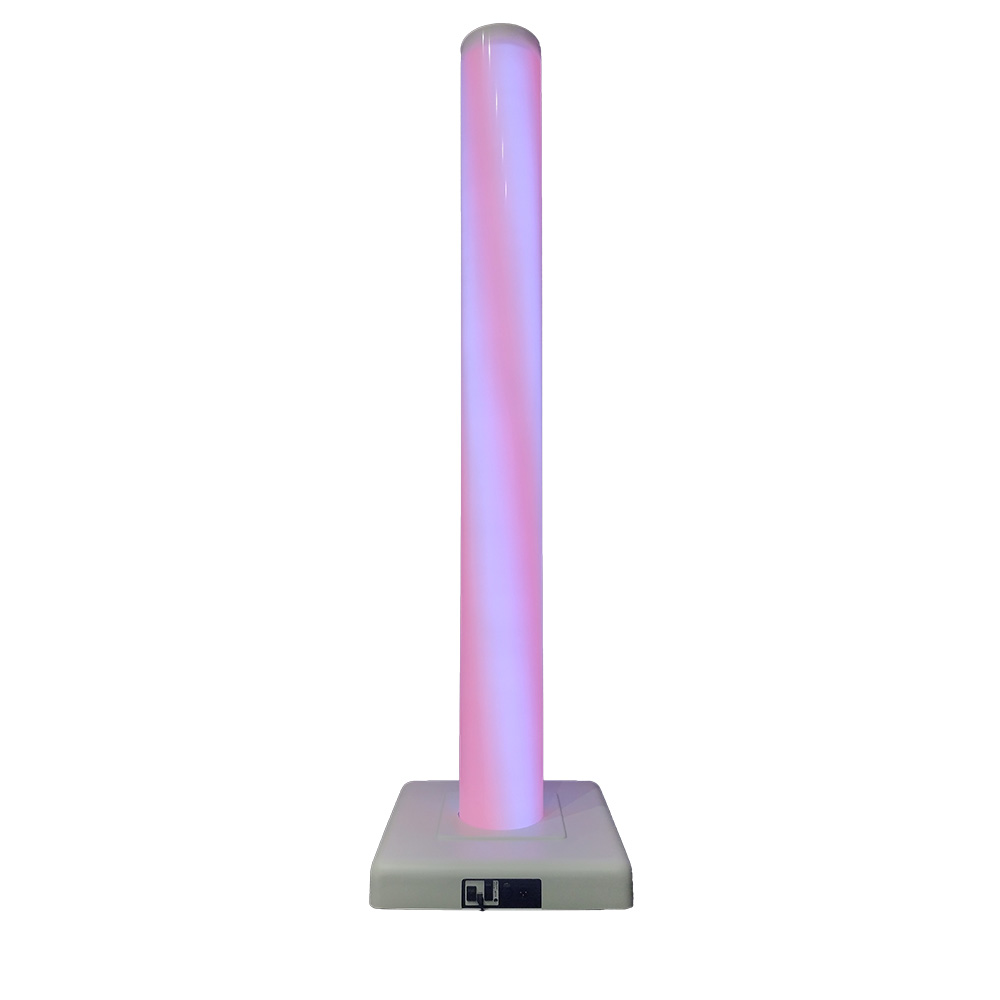

2. Power Input Use this to connect the power adapter cable. Use only the power supply included.
3. Sens/ Speed Mode Switch. (This switch has multiple functions).
   • In any moving pattern modes, press up to change the pattern speed. This can be set between 1-5 (1 being slow, 5 being fast). Each press will increase the speed until it cycles back round to slow again.
   • In any sound reactive pattern mode, press up to change the sound sensitivity. This can be set between 1-5. (1 being low, 5 being high). Each press will increase the sensitivity until it cycles back round to slow again.

Holding up will calibrate the LED Column to the current room noise level. Hold up until the tube flashes red. When the sampling is complete, the tube will flash green. The tube is now calibrated. A single press up of the switch will now return you to the displayed patterns.

Pressing up in the pattern auto cycle mode (mode 16) will change the time interval that each pattern is playing for in this mode. There are 5 options: 2 seconds, 30 seconds, 3 minutes, 10 minutes & 30 minutes. Pressing the switch once upwards will change to the next time. The 2 second time interval is included to allow the user to easily determine the current time interval setting. For example: Simply change the time interval to 2 seconds and then press the Speed switch 4 times upwards to reach the 30 minute time interval. the 2 second time interval is not intended for use other than for demonstration purposes only.

Press down to cycle through the 16 LED Pattern modes with each press.

External Switch Input When an external switch (not included) is connected here, it can be used to switch the pattern mode with each button. The LED Column will turn on in the last mode used. The settings from previous use will also be the same. The product may also be operated with a compatible wireless controller.

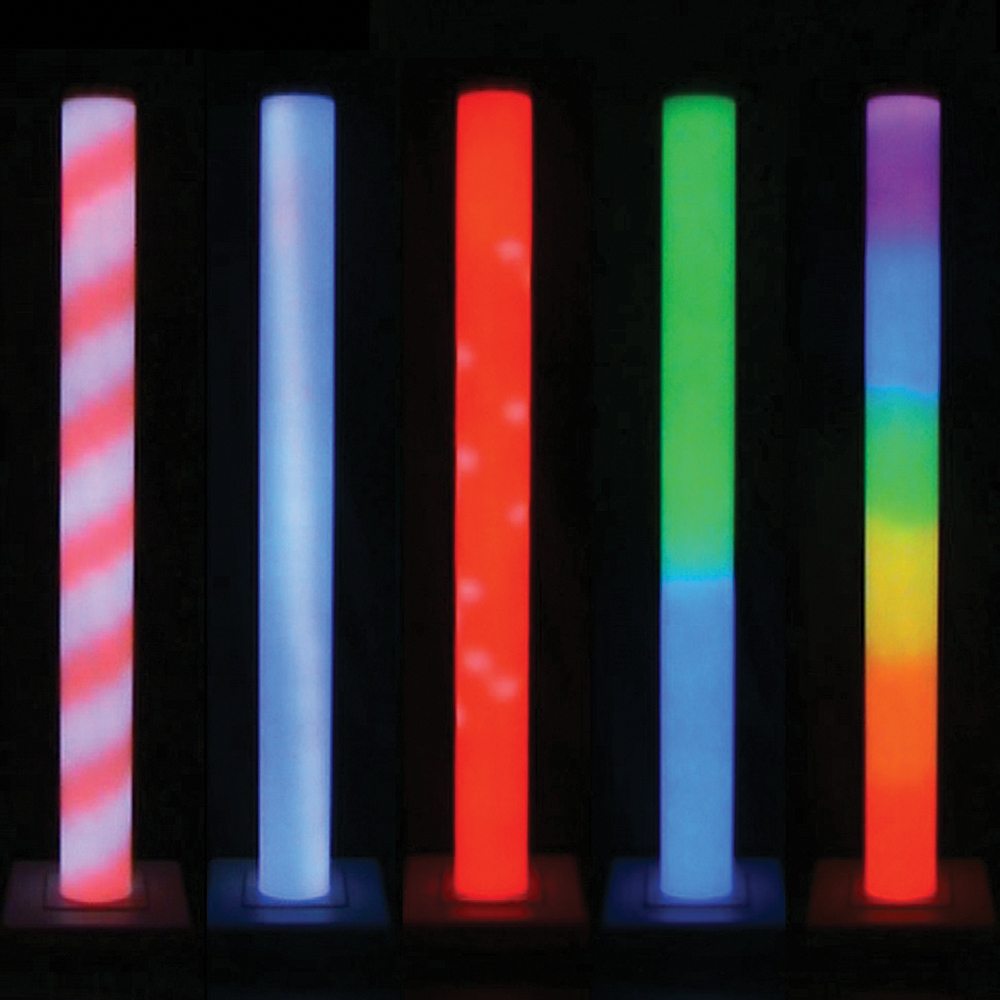

Modes

The LED Column has 16 pattern modes:

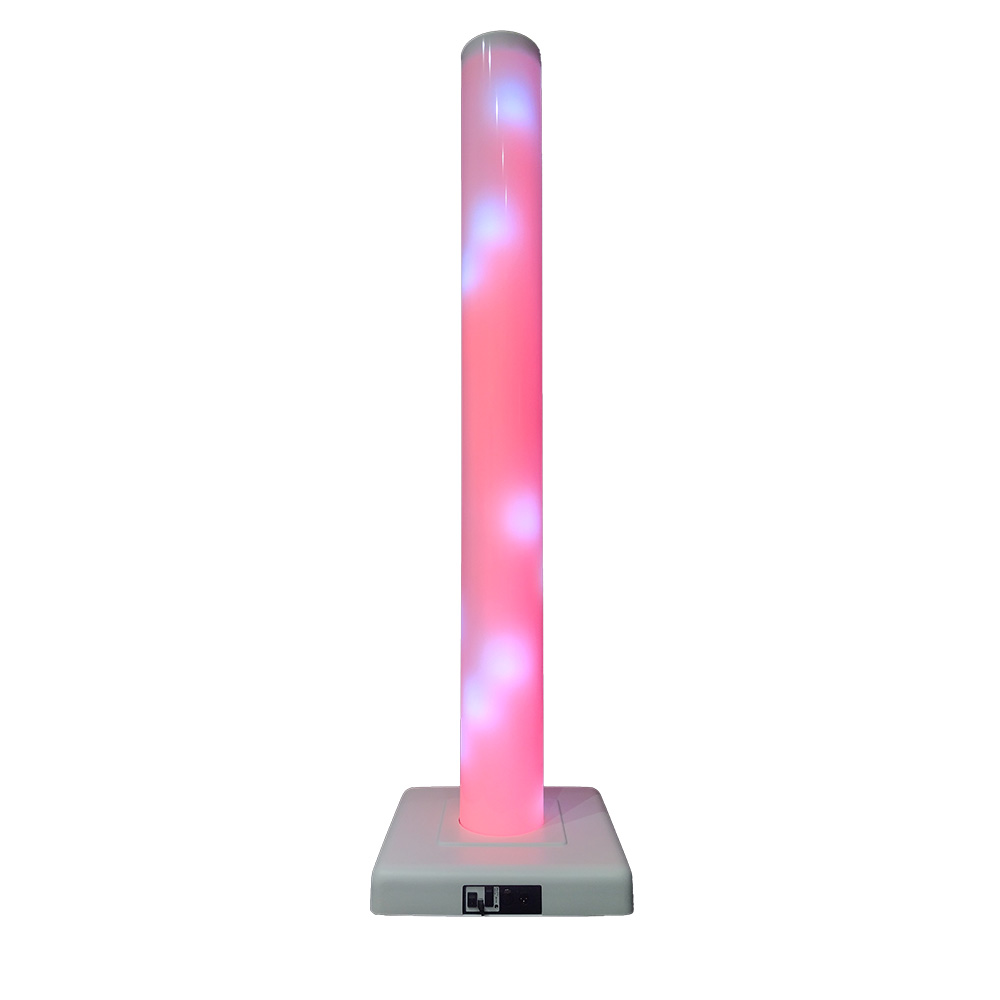

Mode 1: White Bubbles/ Red background travelling upwards

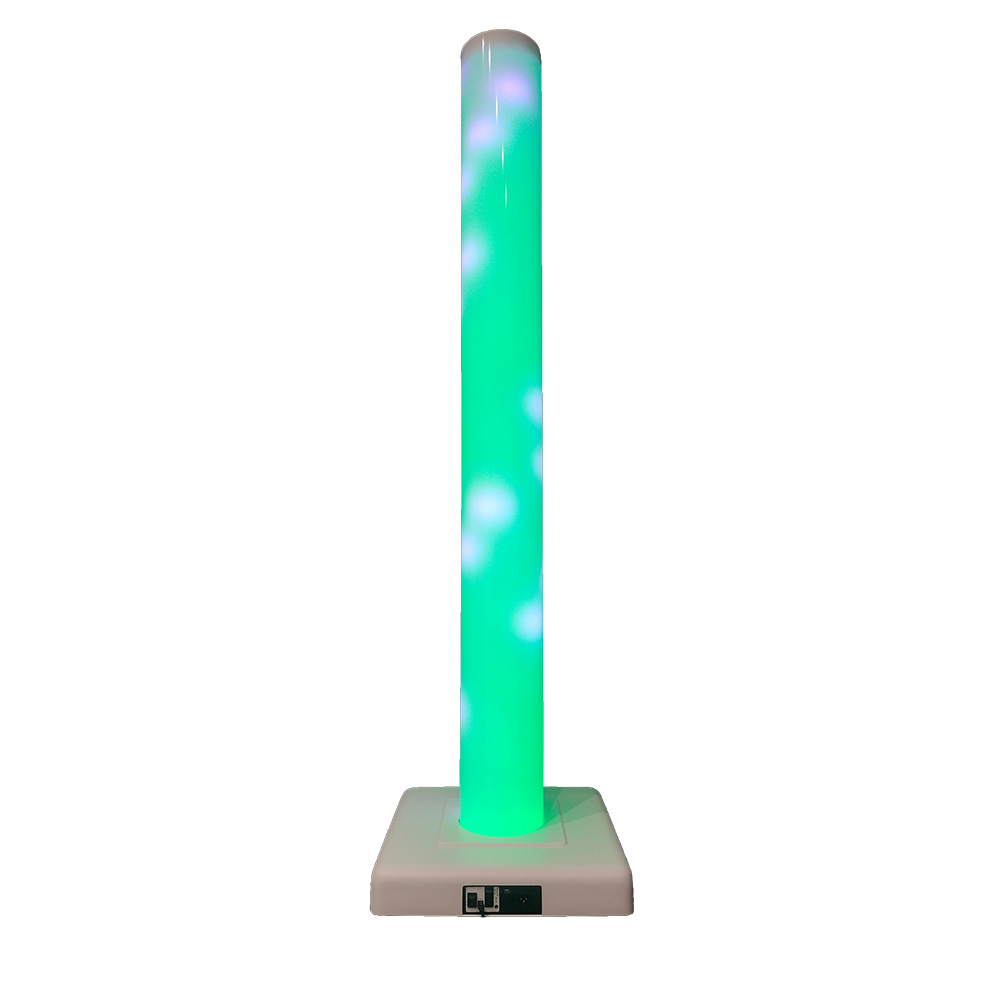

Mode 2: White Bubbles/ Green background travelling upwards

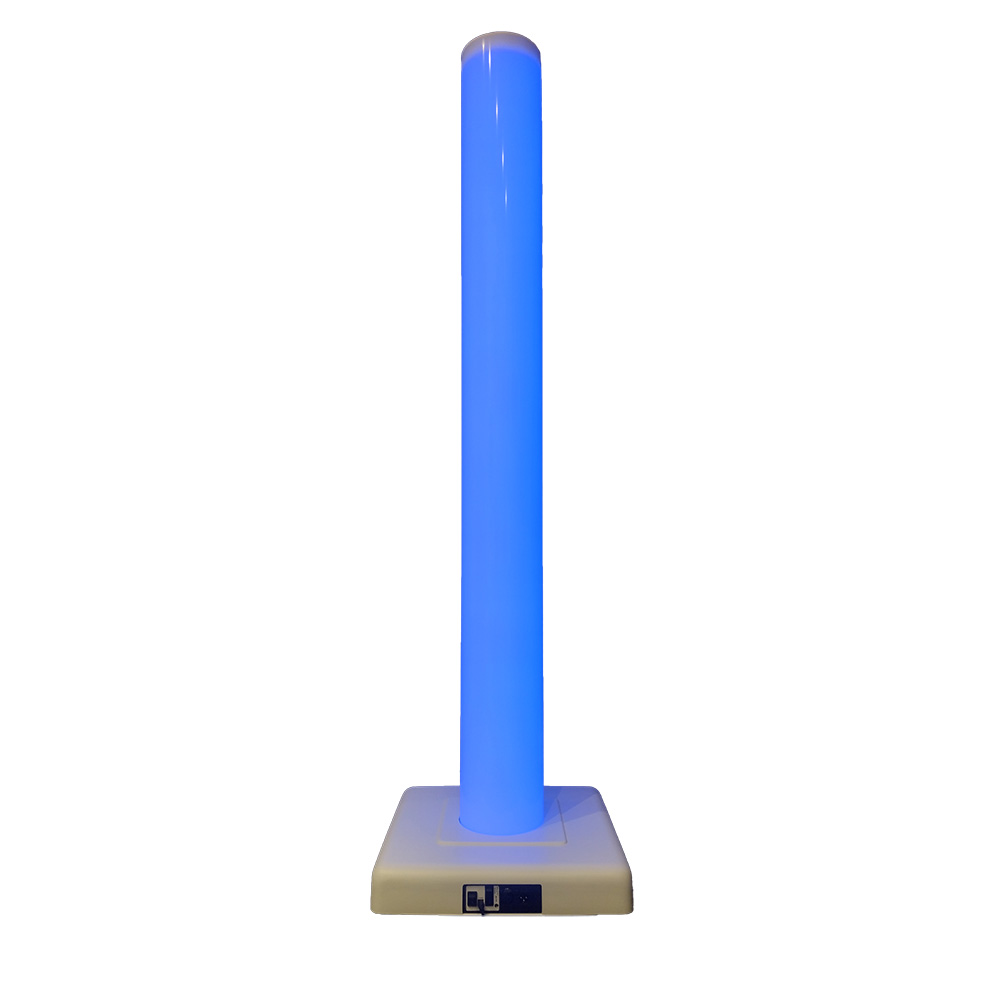

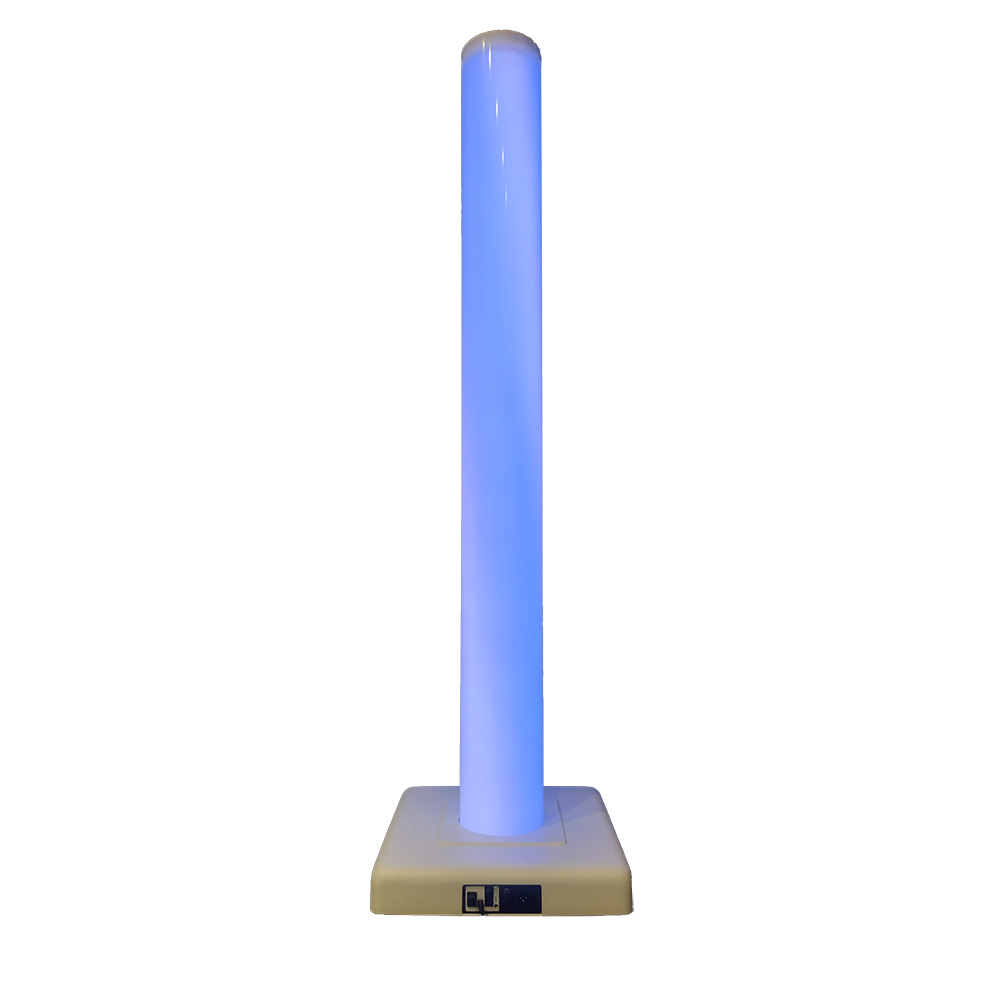

Mode 3: White Bubbles/ Blue background travelling upwards

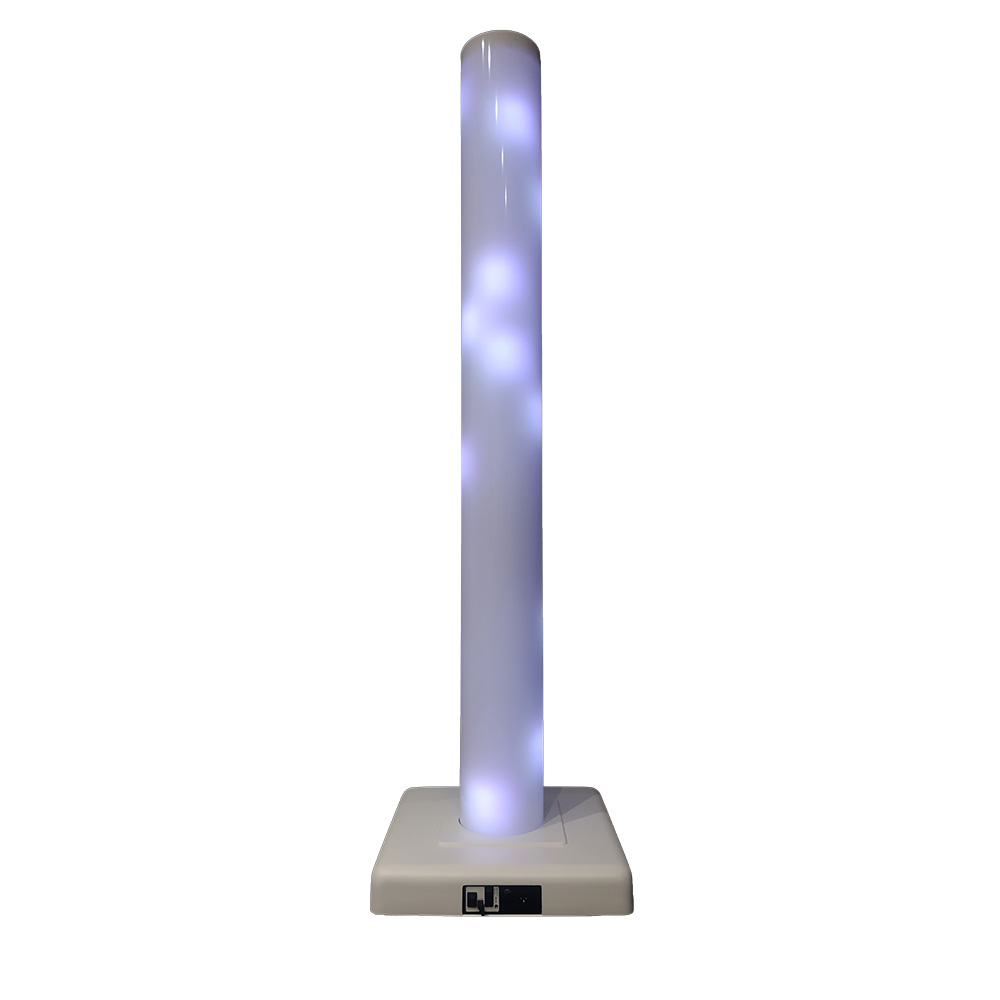

Mode 4: White Bubbles/ Grey background travelling upwards

Mode 5: Vertical Rotating Rainbow Mode 6: Blue/ White Rotating Vertical Stripe

Mode 7: Red/ White Rotating Vertical Stripe Mode 8: Rainbow Travelling Upwards

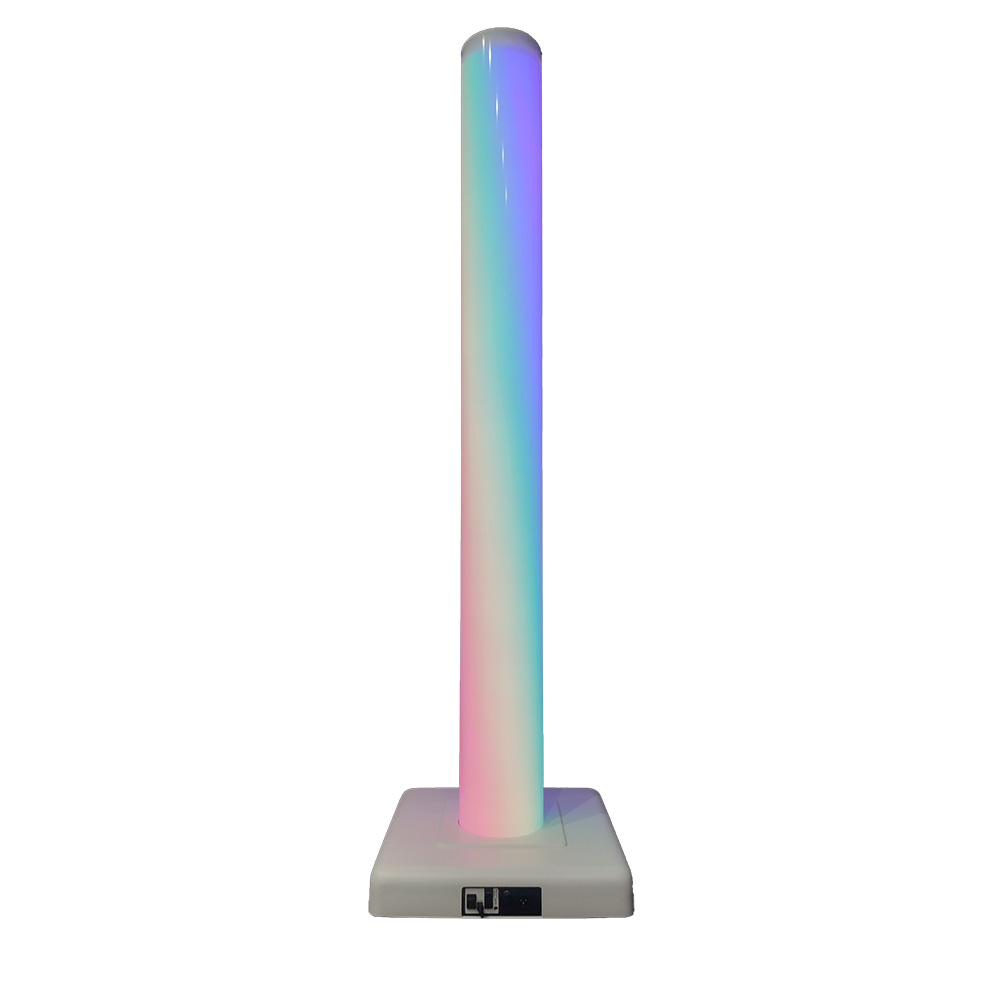

Mode 9: Gradual Fade though a rainbow of colour

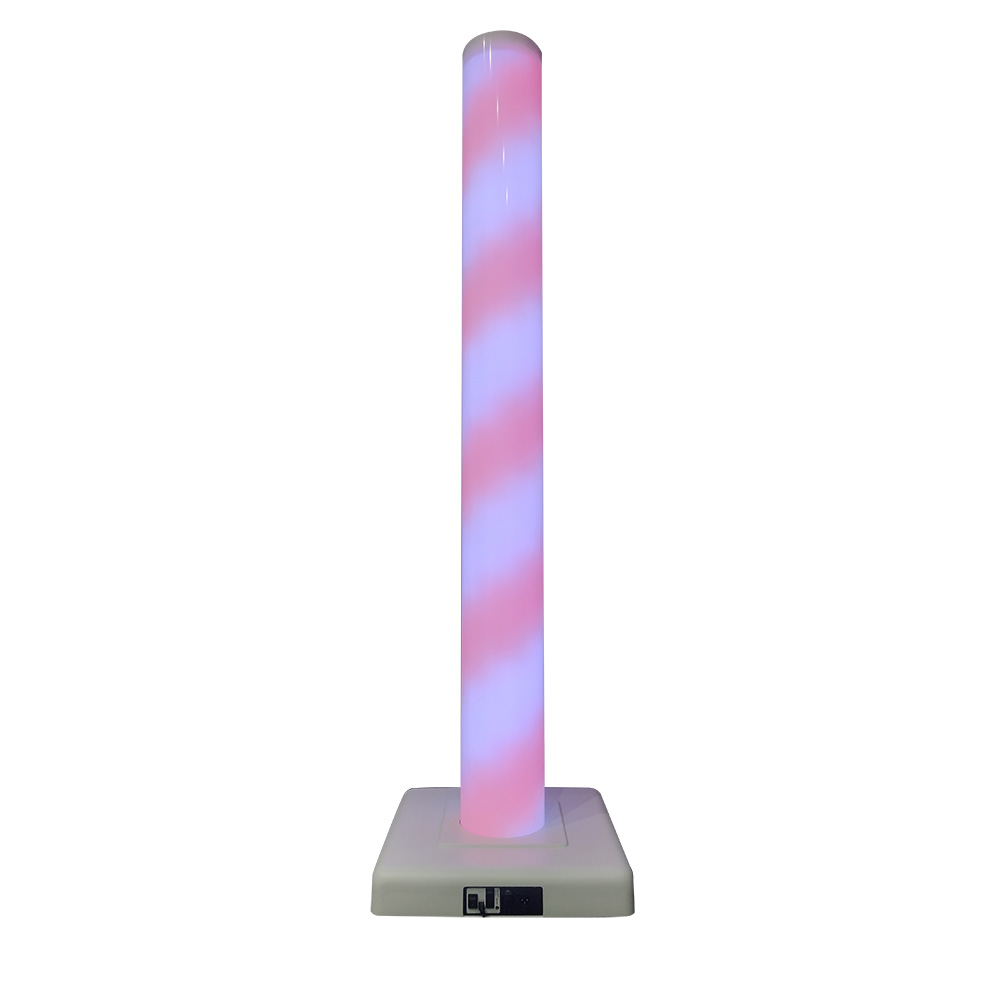

Mode 10: Red/ White rotating diagonal stripe

Mode 11: Pink/ Green rotating diagonal stripe

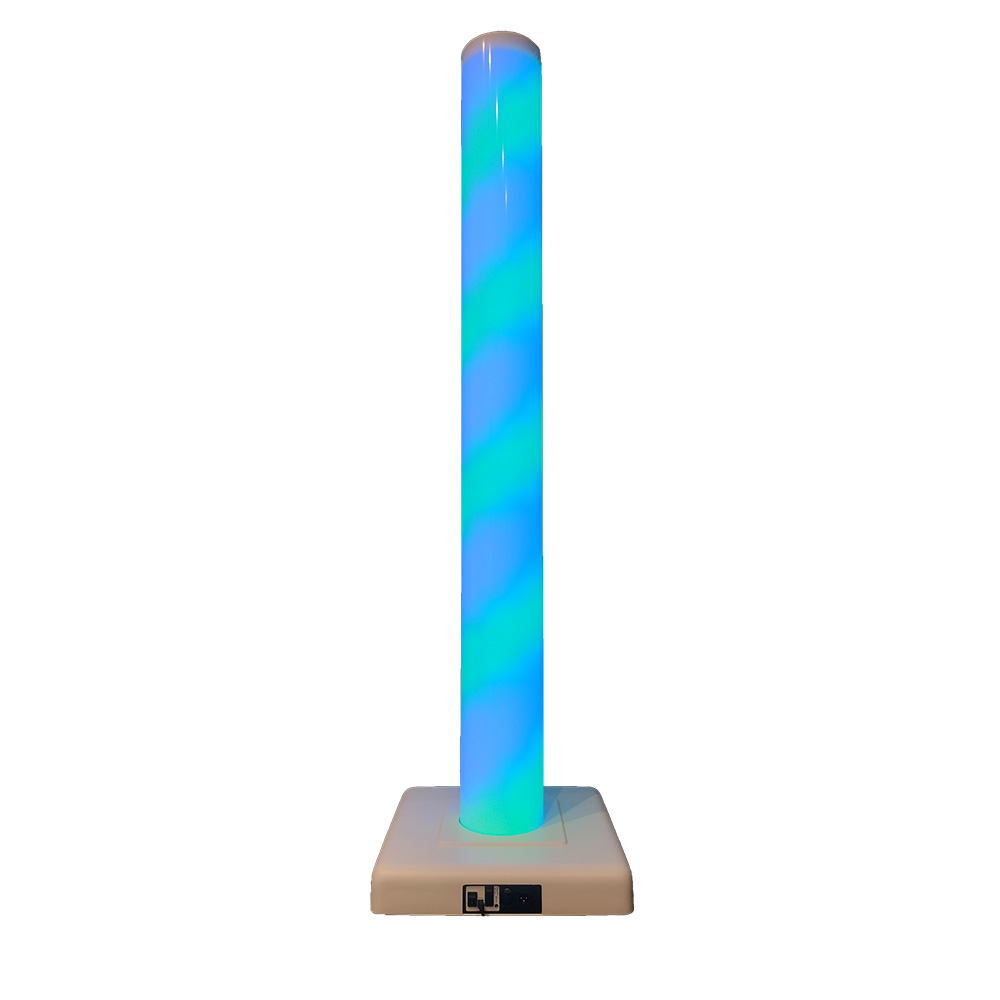

Mode 12: Blue/ Green rotating diagonal stripe

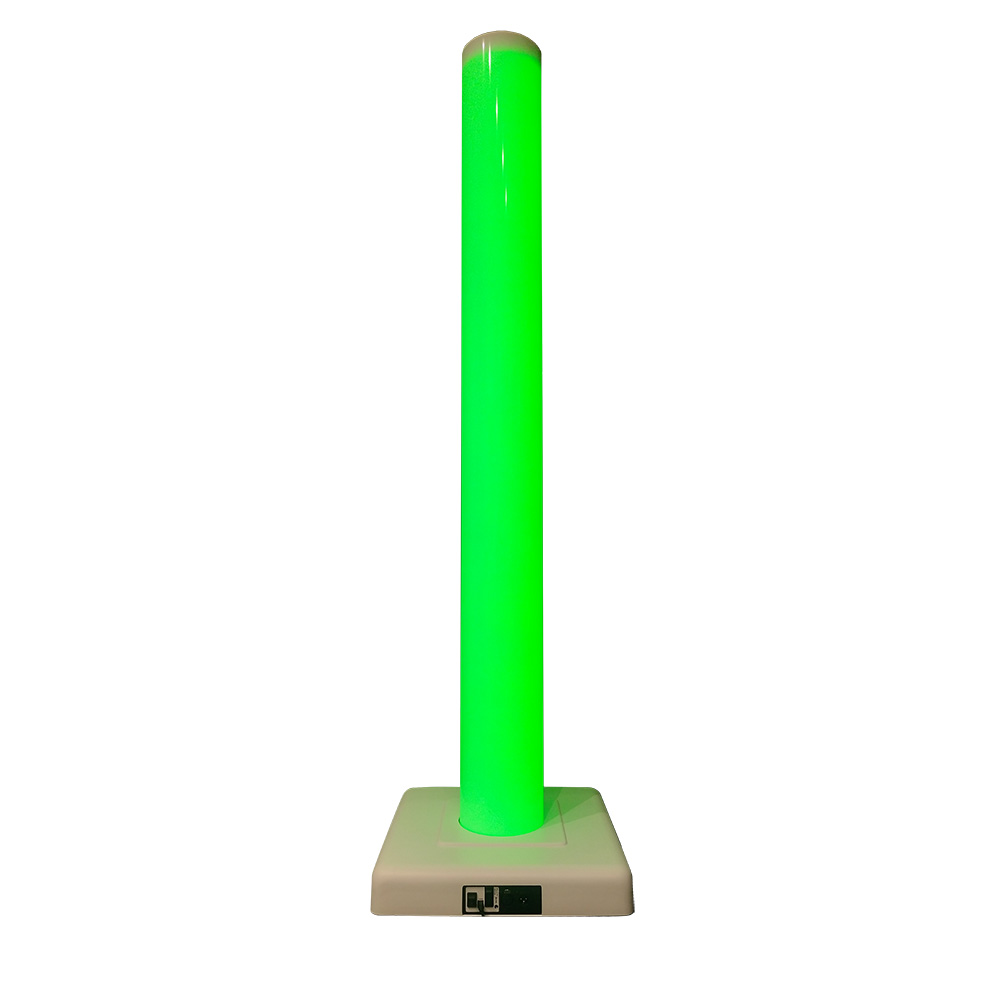

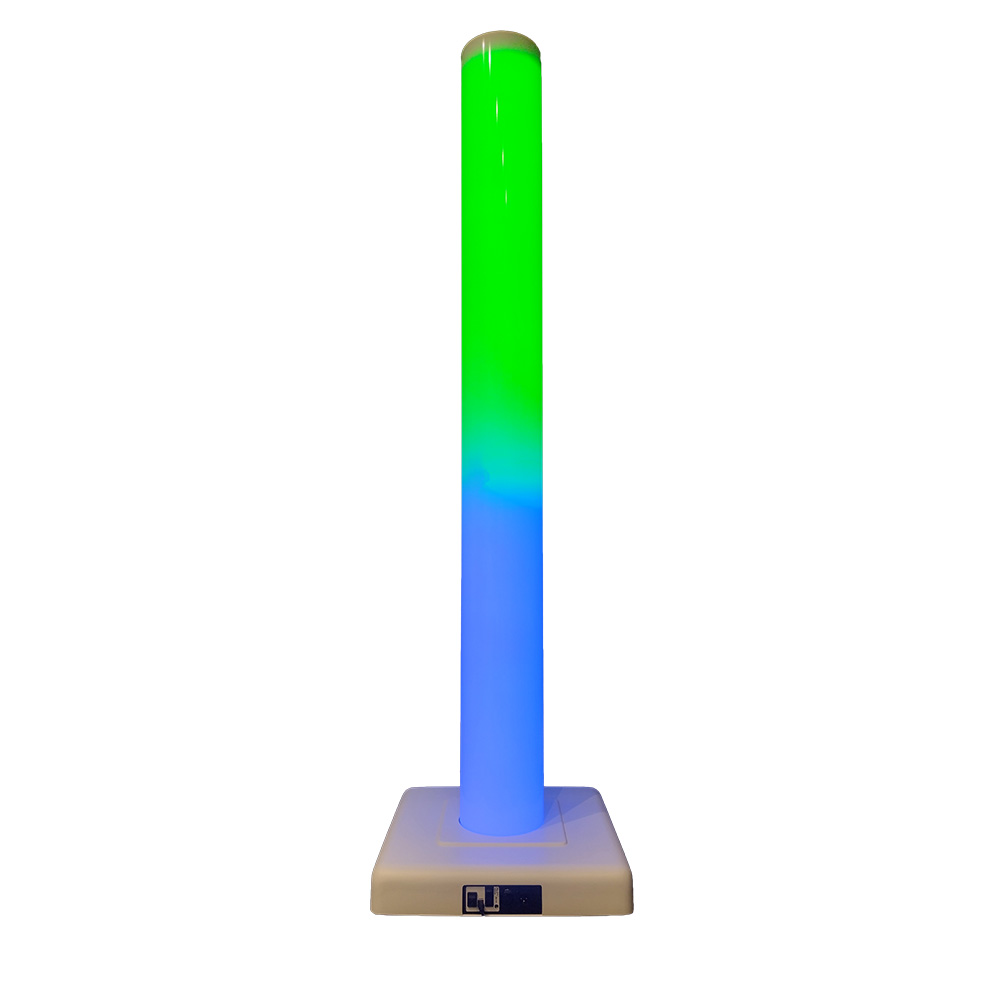

Mode 13: (Sound Responsive) Green column changing to blue in reaction to sound volume

Mode 14: (Sound Responsive) Steps through a rainbow of colours with each individual sound made

Mode 15: (Sound Responsive) Horizontal bands of colour creep up the tube but vanish when sound is made.

Mode 16: Automatic Cycle (Demo mode) The LED Column automatically cycles though modes 1-15.

Assembly To begin, you will need to remove the white plastic cover from the LED Column Base. Firmly pull the cover up and lift away. Locate the 4 holes on the bottom of the LED Column Tube with the 4 studs on the LED Column Base unit. Ensure that cables are not trapped and sit in the cut-out in the MDF profile. Place a washer, followed by a wing nut onto each stud and tighten down. Connect the cables from the LED Column Tube to the back of the control box of the base unit. The LED Column Base cover can now be replaced. Lower the cover over the tube and locate back in place on the base unit. Once located, firmly press the cover into place.
